The Revl Arc is a new action camera with built-in, mechanical stabilization and on-the-go editing capabilities via a proprietary app. This project was part of frog Ventures, the strategic branch of frog design that works with early stage start-ups. The team was able to bring Revl's idea to life by developing everything from a brand new visual identity to hardware design.
The multidisciplinary project included Strategy, Brand, Industrial and Interaction Design efforts to create a new, easier to use and more approachable action camera. As senior designer I led two junior industrial designers in the short and intense process of bringing a concept to fruition in just over a month. My responsibilities included everything from mentorship to sketching, digital modelling, prototype fabrication, rendering and presenting our work to the client.
The design was meant to set the new device apart from the competition by accentuating the rotary stabilization feature through form factor and texture. With a limited real estate, every design decision serves a purpose. Even the layout of the internal components went through numerous iterations to keep the overall package as small as possible. The mechanical attachment features were inspired by bayonet mechanisms used in traditional 35mm cameras to provide a fast and intuitive experience. A series of interchangeable, rubber front bumpers are included in the kit so the user can add a little bit of personality to the camera while protecting the most vulnerable part of the camera, the lens. When used in an array, the different colors help set each camera apart for easier arrangement and editing. Another innovative feature is the replaceable lens, something no other camera out there offers. The result is a camera that is less obtrusive, easier to use and more differentiated from the rest of the category.
The project was done over the course of 9 weeks and after a successful Indiegogo campaign the camera stared shipping late 2017.
Creative Director (UX): Roberto Veronese
Lead Industrial Designer: Alejandra Castelao
Industrial Designers: Jon Grossman, Cat Lam
Strategist: Alison Green
Visual Designer: Eli Myers
Interaction Designers: Roberto Veronese (Lead), Kirk Draheim
Mechanical Engineer: Charlie Ambler
Early sketches playing with form and movement.
Design evolution due to heating constraints and battery layout.

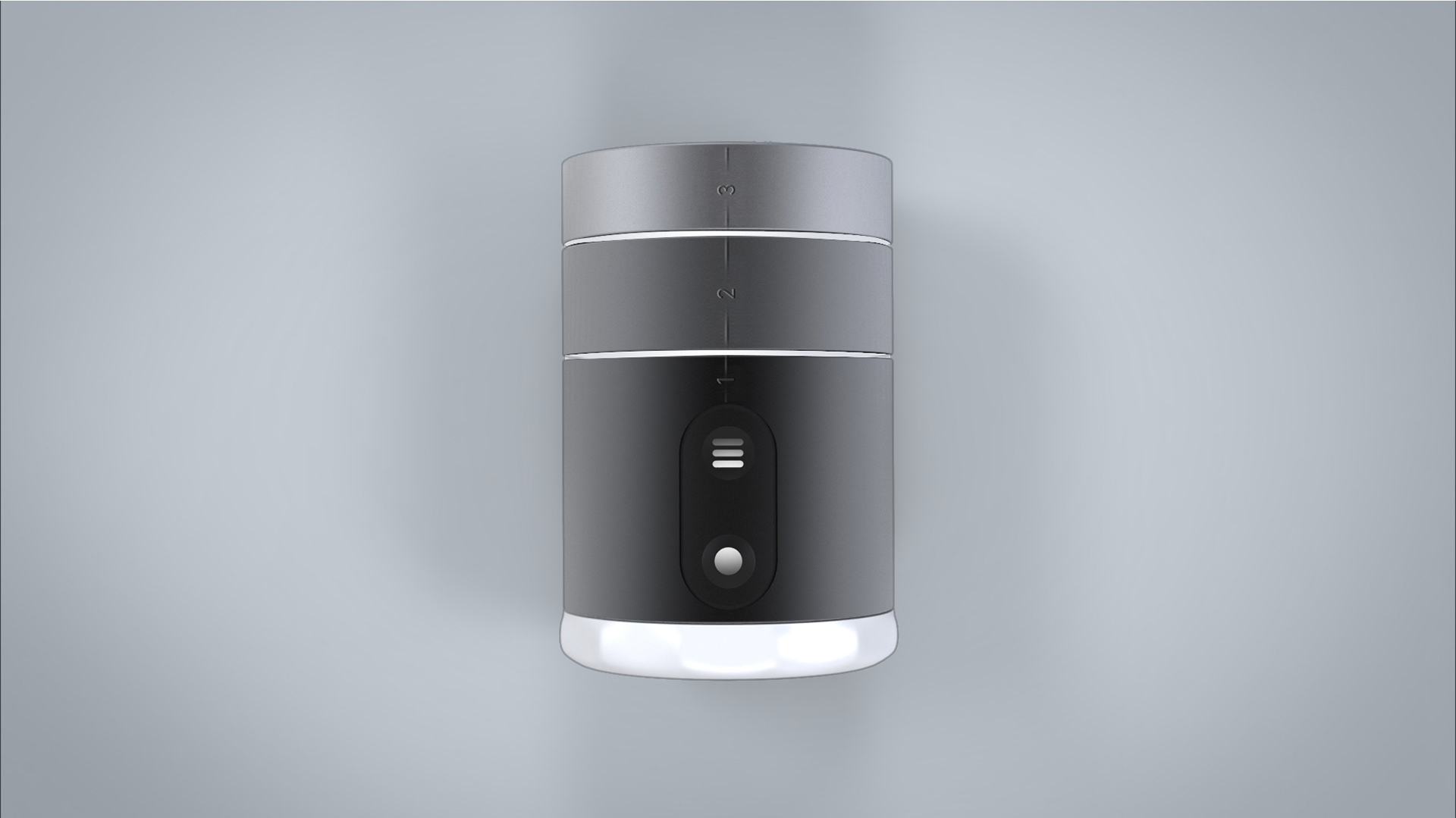

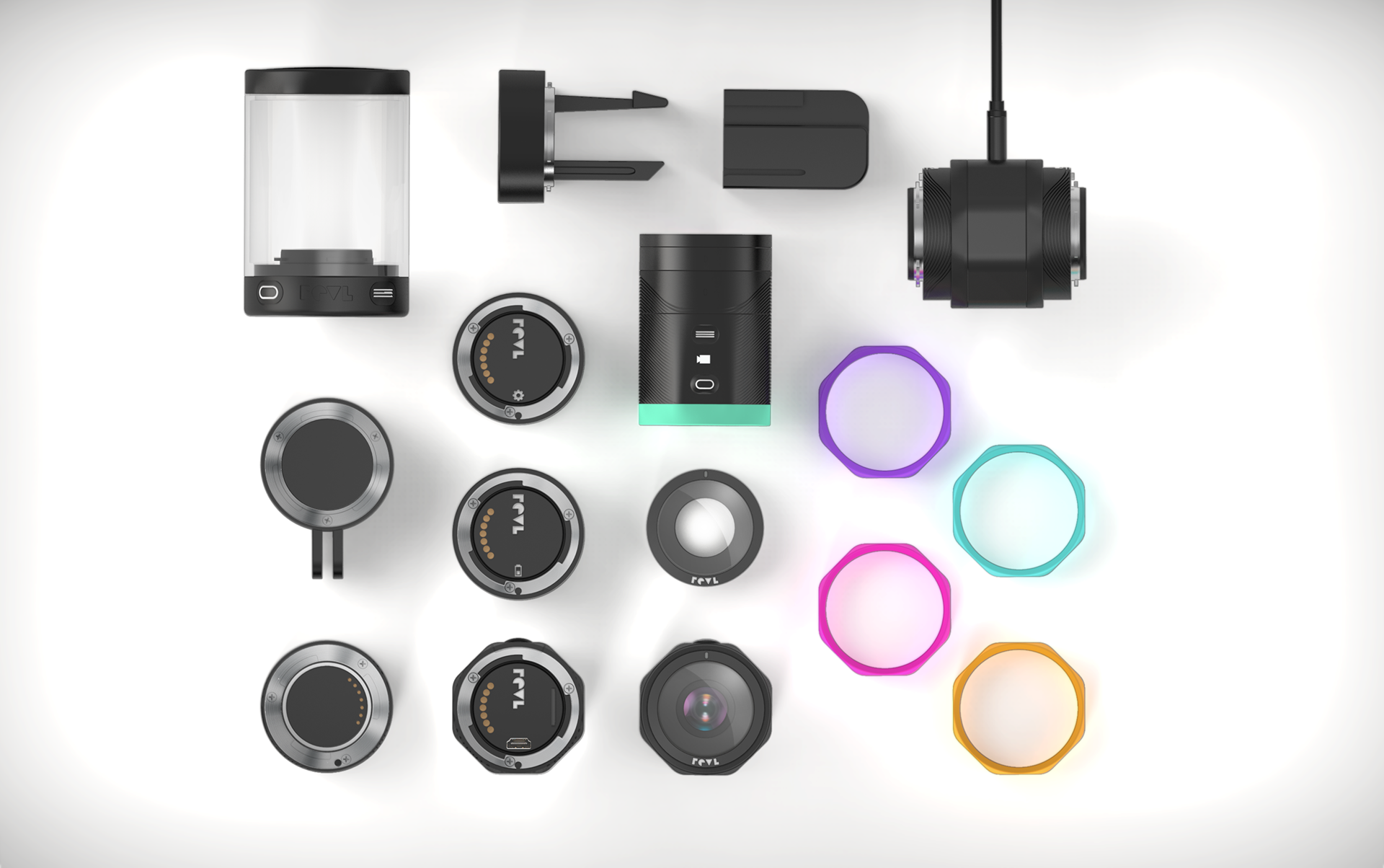

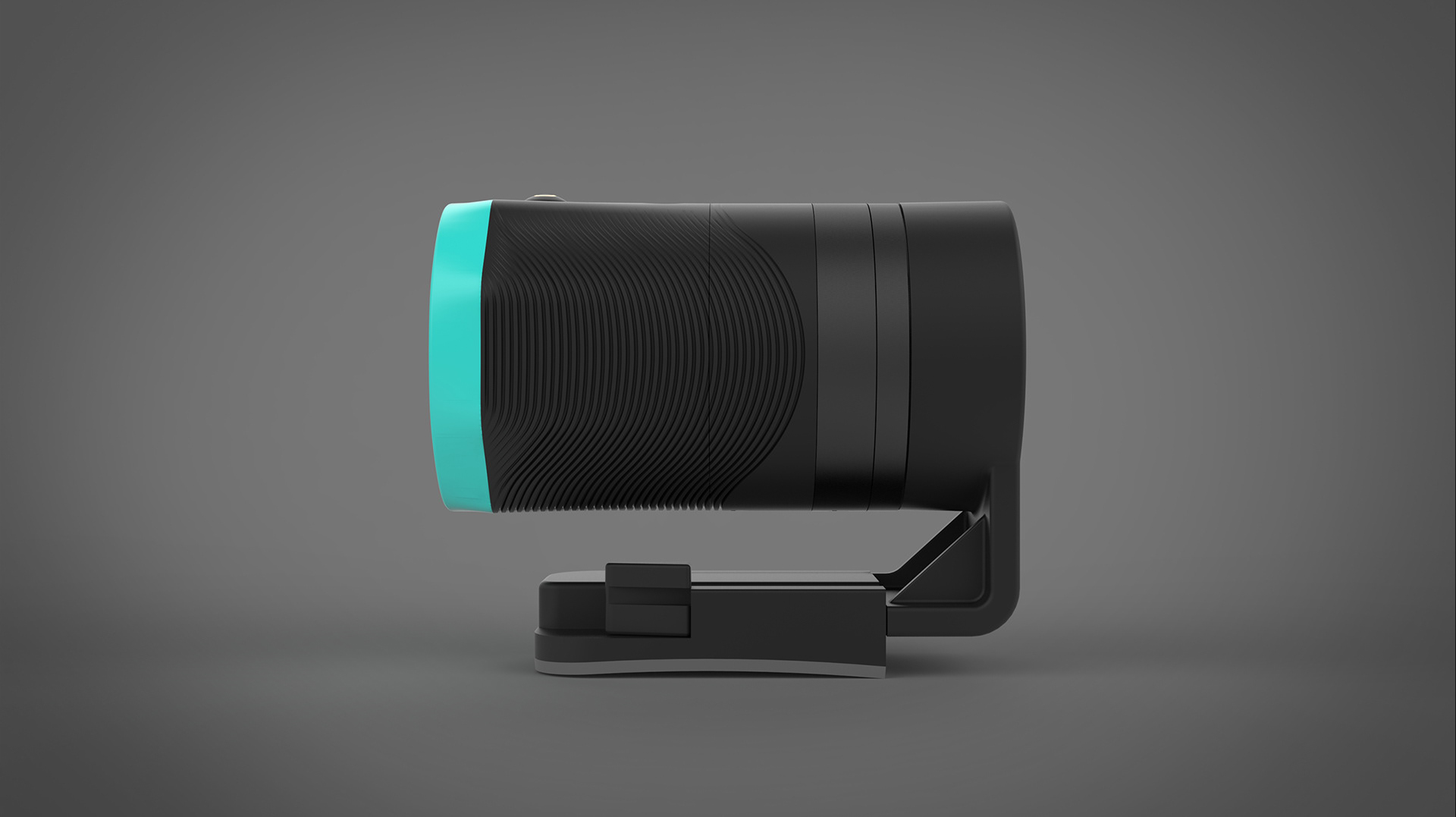

Final design renderings of the camera, dual battery charger, easy release attachment and deep diving case.

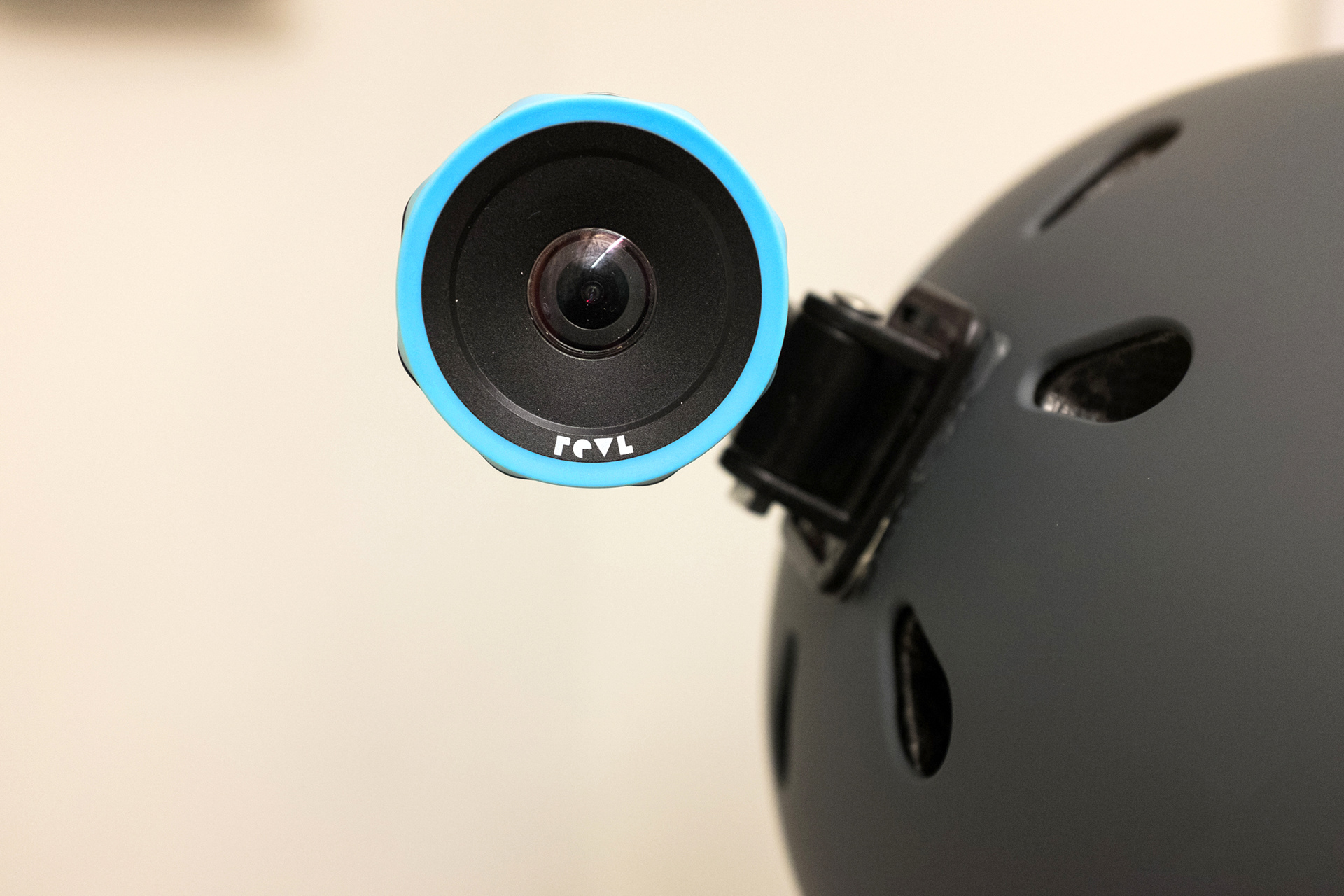

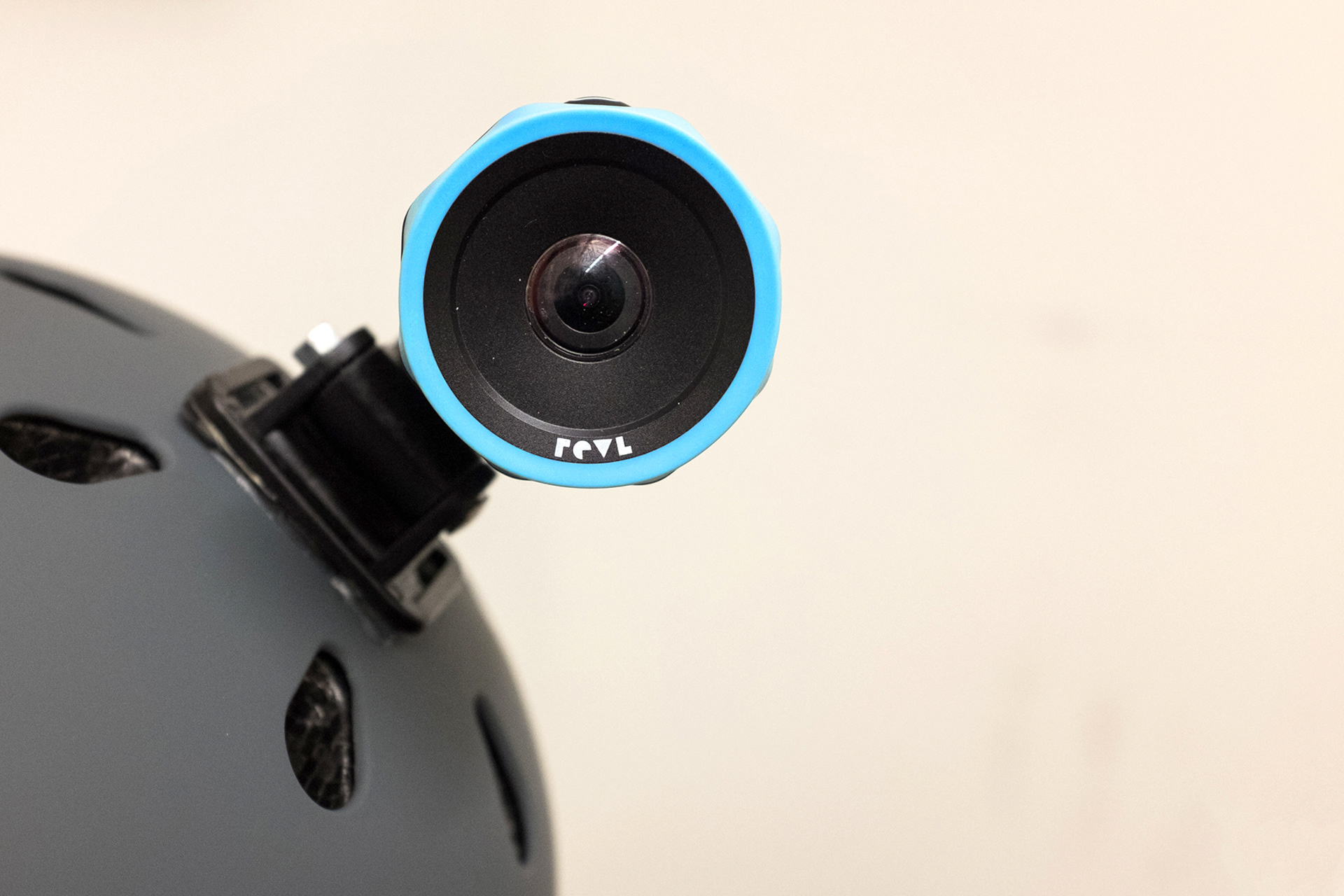

Final production unit created by the Revl team.
